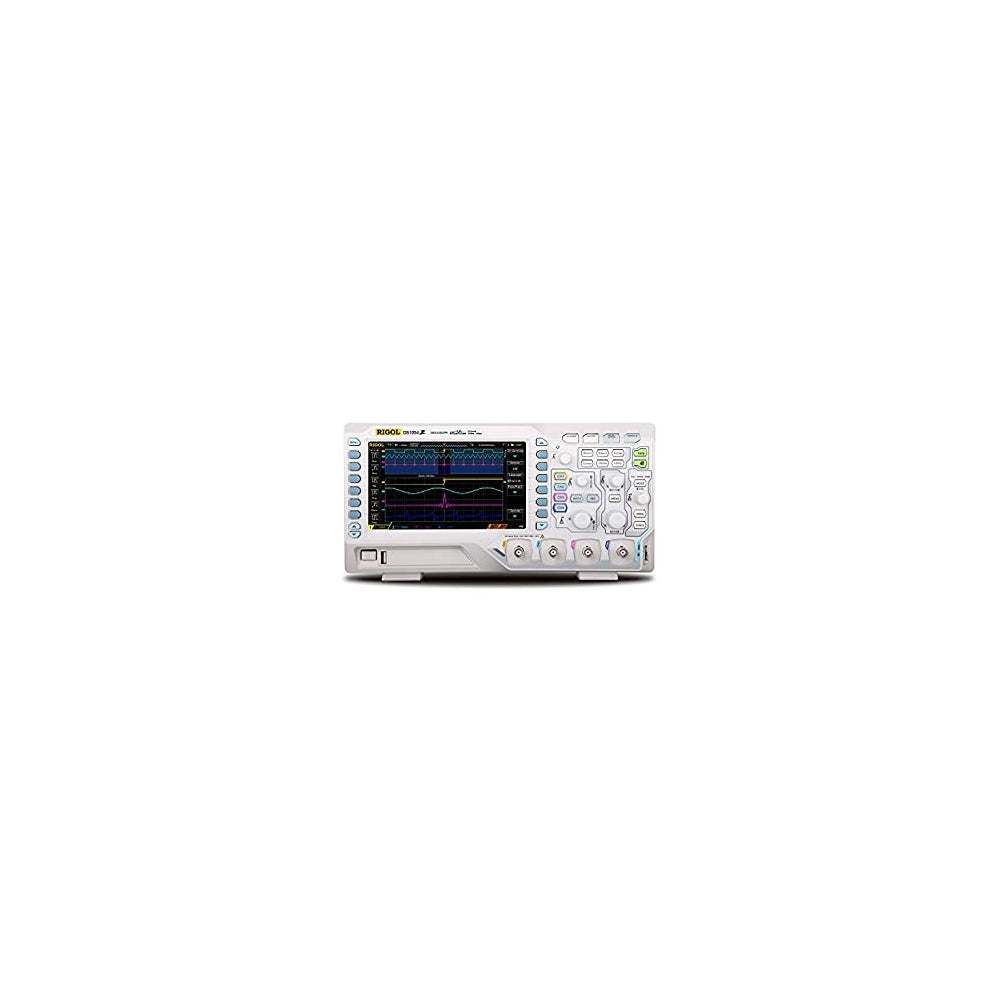

Rigol DS1054Z 50 MHz 4 channel Digital Oscilloscopes

Rigol DS1054Z 50 MHz 4 channel Digital Oscilloscopes

Starting at
Rs. 48,000.00
Starting at

Rs. 48,000.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Description

The Rigol DS1054Z is a 50MHz, 1GSa/s, 4-channel digital oscilloscope offering a powerful combination of quality, performance and functionality - It's excellent value for money. Features include; high memory depth, wide dynamic range, clear display, excellent waveform capture rate, comprehensive triggering functions, auto measurements with statistics, various maths functions including the FFT, pass / fail test and various remote communications interfaces. A dedicated front-panel key enables easy printing to PictBridge compatible printers. Internal and external storage of screen dumps, raw data and instrument set-ups is also supported.

Specifications

Specifications of Rigol DS1054Z 50 MHz 4 channel Digital Oscilloscopes

  • Bandwidth: 50 MHz
  • Analog Channels: 4
  • Real Time Sampling: 1 Gsa/sec
  • Memory: 24 Mpts
  • Waveform Capture Rate: 30,000 wfms/s
  • Vertical Resolution: 8 bits
  • Vertical Scale: 1 mV/div to 10 V/div
  • Timebase Scale: 5 ns/div to 50 s/div
  • Serial Bus Decoding: RS232/UART, I2C, SPI
  • Display: 7 inch WVGA (800x480) TFT LCD
  • Connectivity: USB Host & Device, LAN
  • Item Weight: 2 kg 990 g
  • Product Dimensions: 33.02 x 17.78 x 12.7 cm; 2.99 Kilograms
  • Item model number: DS1054Z
  • Item Height: 5 Inches
  • Item Width: 7 Inches
